RF Performance
Operating Frequency TX . . . . . . . . . . . . . . .. 29.50-30.00GHz RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19.20-20.20GHz Polarization
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Circular RH or LH
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Circular RH or LH Gain (±0.3 dB)
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . 44.8 dBi @ 29.75GHz
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . 41.2 dBi @ 19.70GHz
3 dB Beamwidth
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.7° @ 29.75GHz
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1° @ 19.70GHz Sidelobe Envelope (Tx, Co-Pol dBi)
100 λ/D < q < 20°. . . . . . . . . . . . . . . . . . . . .29-25 log q dBi
20° < q < 26.3°. . . . . . . . . . . . . . . . . . . . . . . . . . . . . -3.5 dBi 26.3° < q < 48°. . . . . . . . . . . . . . . . . . . . . . . .32-25 log q dBi 48° < q < 180° . . . . . . . . . . . . . . . . . . . . . . .-10 dBi (Typical) Antenna Cross-Polarization (within 1dB B/W)
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22dB Antenna Noise Temperature 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .@ 30° EL 56K Max

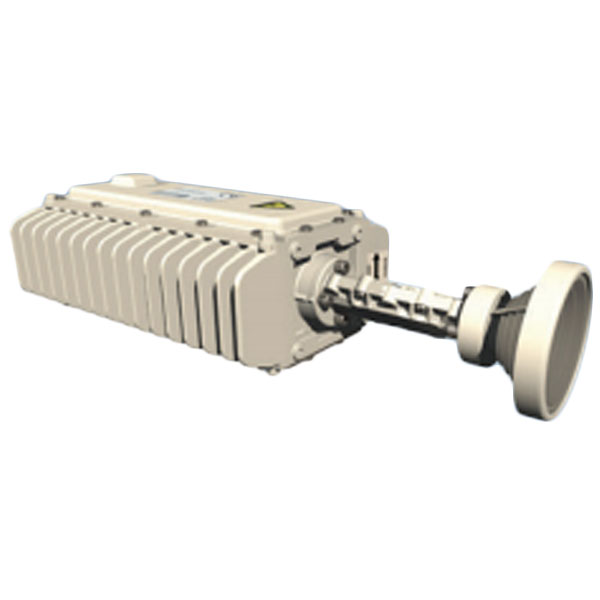

VSWR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3:1 Max Feed Interface. . . . . . . . . . . . . . . . . . . . . . Custom Circular
1 Gain and Noise Temperature at Feed Horn Flange (All specifications typical)
|
Mechanical Performance
Reflector Material. . . . . . . . . . . . . . . . . . . . . . . . . . . . Steel Antenna Optics . . . . .One-Piece Offset Feed Prime Focus Mount Type . . . . . . . . . . . . . . . . . Elevation Over Azimuth Elevation Adjustment Range . . . . . . . . 8°-90° Continuous
Fine Adjustment
Azimuth Adjustment Range . . . . . . . . . . 360° Continuous
± 5° Fine Adjustment
Mast Pipe Interface. . . . . . .51mm (2.00in)Diameter(Std.)
60mm (2.38in)Diameter(Opt.)
Enviromental Performance
Wind Loading Operational . . . . . . . . . . . . . . . . . . 45mph (72km/h) Functional Survival . . . . . . . . . . . . . . . . 80mph (128km/h) Ultimate Survival . . . . . . . . . . . . . . . . .125mph (200km/h) Operational Temperature . . . . . . .-40°C to +60°C
Survival Temperature . . . . . . . . . . . . . . . . . -50°C to +80°C Humidity. . . . . . . . . . . . . . . . . . . . 0 to 100% (Condensing) Corrosion protection . . . . . . .Standard Hardware 500 Hrs
SST Requirements (ASTM B-117)
Solar Radiation . . . . . . . . . . . . . . . . . . . . . . .360 BTU/h/ft2 Shock and Vibration. . . . . . . . . . . .As Encountered during
Shipping and handling
|
