Product Description

New Skyware Global 1.2m Rx/Tx Extended Ka-Band Antenna is a rugged, commercial quality product suitable for the most demanding applications.

The reflector is constructed from glass fiber reinforced polyester for strength and accuracy. A proprietary process developed by Skyware Global ensures high RF reflectivity as needed for Ka Band operation
The precision Az/El mount is made of galvanized steel for excellent corrosion resistance. This mount includes special features to increase pointing accuracy with low backlash and lockdown error.
This Az/El allows the antenna to be installed on standard 73mm [2-7/8”] OD installation mounts.
All hardware is plated to 720 hour salt spray standards tested in accordance with ASTM B-117.
Designed for use with the Skyware Global line of Ka-band feed assemblies.
Tx Cross-Polarization Isolation of 25dB (within 1dB b/w) or better for CP Application.
Excellent Tx Port to Port Isolation of 90dB or better.
Meets or exceeds regulatory agency requirements.
System designed for typical Ka-band RF Electronics.

Specification

RF Performance
Operating Frequency Tx Rx	28.3-30.0 GHz 18.3 – 20.2 GHz
Polarization Tx Rx	Circular, LH or RH Circular, LH or RH
Gain (min) Tx Rx	49.5 dBi @ 30.0 GHz 46.3 dBi @ 20.2 GHz
3 dB Beamwidth Tx Rx	0.56° @ 30.0 GHz 0.83° @ 20.2 GHz
Sidelobe Envelope (Tx, Co-Pol dBi) 100 λ/D < θ < 20˚ 20° < q< 26.3° 26.3° <q< 48° 0 > 48°	29 – 25 Log θ dBi -3.5 dBi 32 – 25 Log θ dBi -10 dBi (typical)
Antenna Cross-Polarization (within 1dB b/w) Tx Rx	>25 dB >22 dB
Antenna Noise Temperature	@ 30˚ El 57˚K Mx
VSWR	1.2:1 Max
Feed Interface	Custom Circular

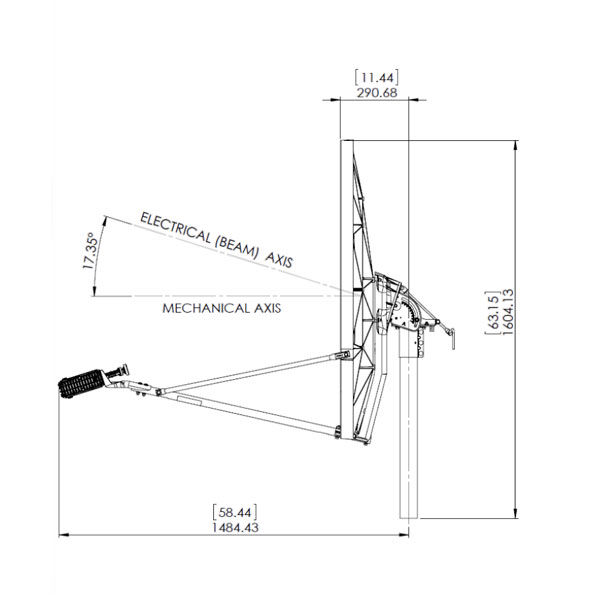

Mechanical Performance
Reflector Material	Glass Fiber Reinforced Polyester
Antenna Optics	One Piece Offset Feed Prime Focus
Mount Type	Elevation over Azimuth
Elevation Adjustment Range	5° – 90° Continuous Fine Adjustment
Azimuth Adjustment Range	360° Continuous; ±5° Fine Adjustment
Mast Pipe Interface	73.2 mm (2.8 in) Diameter
Wind Loading Operational Functional Survival Ultimate Survival	45mph (72 km/h) 80mph (128 km/h) 125mph (200 km/h)
Temperature	-50°C to 80°C
Humidity	0 to 100% (Condensing)
Corrosion Protection	Standard Hardware Meets 720 Hour Salt Spray Test Requirements (ASTM B-117)
Solar Radiation	360 BTU/h/ft²
Shock and Vibration	As encountered during Shipping and Handling
