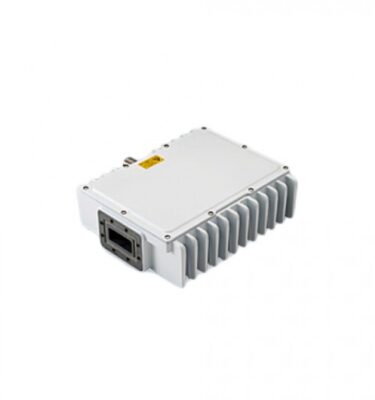

Nisshinbo NJT8102E Series INSAT/Ext. C-band 2W Mini BUC

FEATURES

Frequency Organization

  • RF Frequency: 6.725 to 7.025 GHz
  • IF Frequency: 965 to 1,265 MHz
  • LO Frequency: 5.76 GHz

High Efficiency & Low Distortion Output Power

  • P1dB: +33 dBm min. over temperature
  • ACPR: -26 dBc @ Pout = +33 dBm
  • Power Consumption: 18 W

Small Size & Light Weight

  • Weight: 800 g
Category:

Product Description

This BUC is designed for the block up-converter intended for the satellite communication data uplink application in C-band. It can transmit an RF signal (C-band: 5.85 to 6.425 GHz, 5.85 to 6.725 GHz, or 6.725 to 7.025 GHz) output with up to 2W (+33 dBm) linear as output power @ 1 dB G.C.P. (P1dB). It is combined a GaAs high power amplifier and a block up-converter with a phase locked local oscillator (4.9 GHz or 5.76 GHz) which is synchronized with external 10MHz reference. The BUC receives a reference signal (10 MHz) and an IF signal (L-band: 950 to1,525 MHz, 950 to 1,825 MHz, or 965 to 1,265 MHz) input and transmits an RF signal (C-band: 5.85 to 6.425 GHz, 5.85 to 6.725 GHz, or 6.725 to 7.025 GHz) output. It is operated by +24 V DC power (Range: +12 to +30 V) input. The BUC comes in a single, weatherized housing rated for outdoor use and has either an N-Type or F-type female connector as IF input, a CPR-137G waveguide flange as RF output.

Specification

Items Parameters
RF Output Interface Waveguide, CPR137 (with Groove)
IF Input Interface Coax. Connector, N-type Female (50 Ω)
Coax. Connector, F-type Female (75 Ω)
RF Frequency 6.725 to 7.025 GHz
IF Frequency 965 to 1,265 MHz
LO Frequency 5.76 GHz
P1dB Output Power +33 dBm min. over temperature (@ 1dB G.C.P.)
ACPR -26 dBc typ. @ Pout = +33 dBm
Linear Gain 58 dB nom., 52 dB min.
Input Power Voltage Requirement +24 VDC (+12 to +30 VDC)
Power Consumption @ P1dB 18 W typ., 22 W max.
Operating Temperature Range -40 to +60 ℃
Waterproof / Dustproof (IP-code) IP67
Weight 800 g
Dimensions (L) 135.4 x (W) 85 x (H) 56 mm (w/o Interfaces & Screws)

Nisshinbo NJT8102E Series INSAT/Ext C-band 2W Mini BUC
